Equipped with 4 pcs arc-shaped feeder rail,16pcs auto motor-driven feeders, the movement of which is controlled by computer up or down. This could precisely realize the knitting of intarsia, inverse plating and reduce running course, to improve knitting efficiency. It is the latest innovative proprietary technology。
-
The cam system utilizes motor-controlled needle raising structure, carriage effective movement distance is shortened, carriage return become faster and more stable
-
The front and back capping structure are more colorful and smoother
-
Up-and-down motion of feeder is more useful and effective for making intarsia and capping structure
-
4 pcs arc-shaped feeder rail ,16pcs auto motor-driven feeders, are utilized to reduce free carriage movement. Knitting efficiency are improved,16colors intarsia structure can be made maximumly
-
non-waste yarn starting comb is selectable for saving yarn an
-
Stable scissor and gripper are controlled by program. auto grip and cut motion are realized
|
Gauge |
12G/12GV 14G/14GV 16G/18G |
|
|
Knitwidth |
52inch（132cm） |
80inch（203cm） |
|
Knittingsystem |
singlecarriage（doubleandthreesystem) |
|
|
Cam system |
5.2-inchsmallercarriage |
|
|

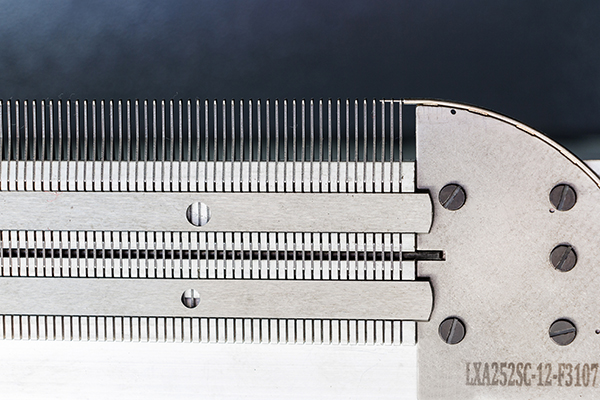

Needlebed |
Insertplatemodel |
|
|
Selectionsystem |
8segmentPre-selectionsystem |
|
|
Machinespeed |
Maximum speed1.4meter/second,knittingspeedcouldbesethigherorloweraccordingtoknitstructureand yarnstrength |
|
|
Needlebedracking |
Maximum L/Rmovementrange4inch,drivenbyservomotor |
|
|
Autostopdevice |
Yarnbreakage,yarnknot,fabric-rewindneedlecollision,overload,setknitpiecefinish,specificlinestop,program error |
|
|
Safetyequipment |
Thewholemachineisequippedwithanti-noiseandanti-dustcover,infraredraysensor,emergencystop sensor,powercutoffdevice |
|
|
Power |
VoltageAC220v/AC380v,Frequency50Hz/60Hz,Powerconsumption:2Kw |
|
|
Standardconfiguration |
Rubberroller,combwithneedle/wire,twoscissorset |
Rubberroller,combwithneedle/wire,twoscissorset, autodownroller |
|
Optionalconfiguration |
Autodownroller |
|
|
Specificconfigurations |
Arc-shapedfeederrailwithautomotor-driven |
Arc-shapedfeederrailwithautomotor-driven |
